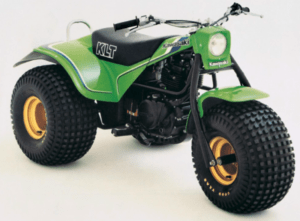

The Kawasaki KLT200 was produced from 1981 to 1984
Engine & Performance
- Displacement: 198 cc
- Engine Type: Air-cooled, 4-stroke, SOHC, single-cylinder
- Bore x Stroke: Standard 4-stroke configuration
- Compression Ratio: 9.0:1
- Fuel System: Keihin PW26 carburetor
- Starting System: Electric and kick start
- Maximum Torque: 10.9 ft/lb (14.8 Nm) at 6,000 rpm
Transmission & Drive
- Transmission: 5-speed manual constant mesh
- Clutch: Manual wet multi-plate
- Final Drive: Enclosed O-ring chain
Chassis, Suspension & Brakes
- Frame Type: Tubular steel
- Front Suspension: Dual front shocks / forks
- Front Brakes: 140 mm mechanical drum brake
- Rear Brakes: 110 mm mechanical drum brake
- Front/Rear Tires: Low-pressure balloon ATV tires (Front/Rear size typically 22 x 11.00-8)
Dimensions & Capacities
- Dry Weight: 313 lbs (142 kg)
- Overall Length: 66.7 inches (1,694 mm)
- Overall Width: 40.4 inches (1,026 mm)
- Overall Height: 37.0 inches (940 mm)
- Wheelbase: 44.3 inches (1,125 mm)
- Ground Clearance: 4.7 inches (119 mm)
- Fuel Capacity: 2.9 US gallons (11 liters)
Electrical
- Ignition System: CDI (Capacitor Discharge Ignition)
- Electrical System: 12-volt
- Headlight: 35W
- Spark Plug: NGK B7ES or Nippon Denso W22ES-U
