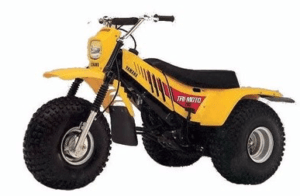

The Yamaha YTM175 was produced from 1982 to 1983
Engine & Performance
- Engine Type: Air-cooled, 2-stroke, reed-valve inducted, single-cylinder
- Displacement: 171 cc (10.4 cu in)
- Bore x Stroke: 66.0 mm x 50.0 mm
- Compression Ratio: 6.0:1
- Maximum Torque: 12.3 ft-lbs @ 5,500 RPM
- Top Speed: ~50 mph (80 km/h)
- Ignition Type: Capacitor Discharge Ignition (CDI)
- Lubrication: “Autolube” separate oil injection system (no fuel premixing required)
Drivetrain & Transmission
- Transmission: 5-speed manual with an automatic clutch
- Shift Pattern: Neutral at the bottom (all up-shifts) to help riders maintain momentum in mud or sand.
- Final Drive: Heavy-duty 520 O-ring chain
Chassis, Suspension & Brakes
- Frame Type: High-strength, thick-wall tubular steel
- Front Suspension: Terrain-leveling telescopic fork
- Rear Suspension: Rigid (no rear shock; relied on low-pressure balloon tires)
- Front Brakes: Mechanical drum
- Rear Brakes: Enclosed mechanical disc
- Front/Rear Tires: 22 x 11 x 8 balloon tires
Dimensions & Capacities
- Dry Weight: 262 lbs (119 kg)
- Overall Length: 68.9 inches (1,750 mm)
- Overall Width: 39.2 inches (995 mm)
- Wheelbase: 44.5 inches (1,130 mm)
- Seat Height: 27.2 inches (690 mm)
- Fuel Capacity: 1.8 US gallons (6.8 liters)
- Oil Capacity: 1.4 US quarts (1.3 liters)
