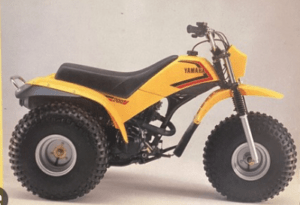

The Yamaha YTM200 was produced from 1983 to 1985
Engine Specifications
- Displacement: 196 cc
- Type: Air-cooled, 4-stroke, SOHC, single-cylinder
- Compression: 128 psi (normal range 114–142 psi)
- Spark Plug: D7EA with a 0.6–0.7 mm gap
- Valve Clearance (Cold): Intake 0.05–0.09 mm, Exhaust 0.11–0.15 mm
Transmission & Drive
- Transmission: Automatic clutch with multi-speed gear configuration (or 5-speed depending on sub-model)
- Final Drive: Chain or shaft drive (depending on specific sub-model like the YTM200EK/ERN)
Capacities & Service Data
- Engine Oil: SAE 10W-40 (1.8 liters capacity)
- Recommended Oil Types: Yamalube 4-Cycle or SAE 20W-40 (above 41°F)
- Gear Oil: SAE 80/80W90 hypoid gear oil for the final gearbox (0.14 qt)
- Idle Speed: 1400 rpm
Chassis & Dimensions
- Dry Weight: Approximately 279–291 lbs
- Brakes: Front drum brake (using DOT 4 fluid)
- Tire Pressure: Recommended 2.2 psi (2 psi minimum, 10 psi maximum)
- Electrical System: 12-volt system with a YTX14-BS battery and a 12v 45/45w headlight
