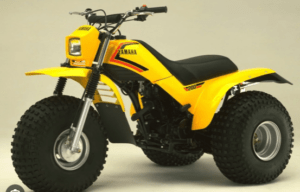

The Yamaha YTM200E was produced from 1983 to 1985
Engine Specifications
- Engine Type: Air-cooled, 4-stroke, SOHC, single-cylinder
- Displacement: 196 cc
- Starting System: Electric start and emergency pull-start rope
- Spark Plug: NGK D7EA (gap: 0.6–0.7 mm)
- Valve Clearance (Cold): Intake 0.05–0.09 mm, Exhaust 0.11–0.15 mm
Transmission & Drivetrain
- Transmission: 5-speed with automatic clutch
- Final Drive: Shaft drive
Capacities & Fluids
- Engine Oil: SAE 10W-40, capacity 1.8 liters
- Final Gearbox Oil: SAE 80/80W-90 hypoid gear oil
Chassis & Dimensions
- Dry Weight: 279 lbs (126.5 kg)
- Tires (Front/Rear): 25 x 12 – 9
- Tire Pressure: 2.2 psi recommended (2 psi min, 10 psi max)
- Brakes: Front drum (hydraulic with DOT 4 fluid), rear drum
