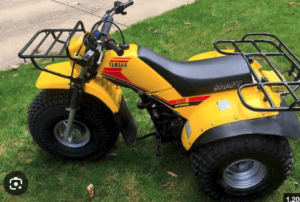

The Yamaha YTM200ER was produced from 1983 to 1985
Engine & Performance
- Engine Type: 196cc, 4-stroke, SOHC, single-cylinder
- Cooling System: Air-cooled
- Fuel System: Mikuni Carburetor
- Ignition: CDI (Capacitor Discharge Ignition)
- Starting System: Dual electric start and backup recoil pull starter
Drivetrain & Transmission
- Transmission: 5-speed semi-automatic (automatic clutch with a foot shifter)
- Final Drive: Enclosed shaft drive
- Reverse Gear: Yes (activated via a designated lever/selector)
Chassis, Suspension & Brakes
- Frame: Steel tubed frame
- Front Suspension: Telescopic fork shocks
- Rear Suspension: Rigid (no rear shock; relies on low-pressure balloon tires for cushioning)
- Front Brakes: Mechanical drum brake
- Rear Brakes: Enclosed mechanical disc or drum brake
- Wheels: 9-inch steel rims wrapped in high-flotation balloon tires
Capacities & Dimensions
- Fuel Capacity: ~2.4 gallons (approx. 9.1 liters)
- Engine Oil Capacity: 1.8 liters (Recommended grade: SAE 10w-40 / Yamalube 4-cycle)
- Dry Weight: Approximately 340 lbs (154 kg) for the ER model (heavier than the base YTM200 pull-start version due to the starter battery, racks, and reverse gear components).
Standard Utility Features
- Luggage Racks: Factory-equipped front and rear heavy-duty cargo racks
- Lighting: Integrated front trail headlight and rear taillight
- Protection: Full underbody skid plate and front mudguards/mudflaps
- Towing: Rear trailer hitch receiver
