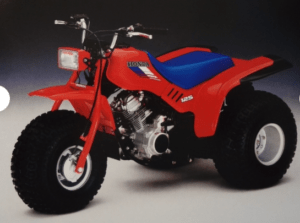

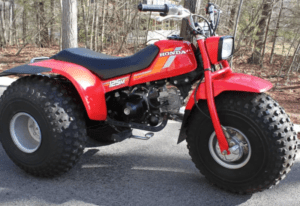

The Honda ATC125M first generation was produced from 1984 to 1985, second generation from 86-87
Engine Specifications
- Displacement: 124cc
- Engine Type: Four-stroke, single-cylinder, OHV
- Horsepower: 8.6 hp
- Torque: 6.4 lb-ft
- Bore x Stroke: 55.0 mm x 52.2 mm
- Compression Ratio: 8.8:1
- Carburetor: Keihin 20mm piston-valve (PB20A)
- Ignition: CDI electronic ignition
- Starter: Electric and recoil pull starter
Drivetrain & Transmission
- 1984–1985 Models: 4-speed automatic-clutch transmission with a dual-range high/low sub-transmission.
- 1986–1987 Models: 5-speed automatic-clutch transmission with a reverse gear.
Chassis & Dimensions
- Frame: Steel tube (no front or rear suspension)
- Dry Weight: 238 lbs (1984–1985) / 276 lbs (1986–1987)
- Fuel Capacity: 7.7 liters (7.2L main, 0.5L reserve)
- Overall Length: 1,675 mm (65.9 inches)
- Overall Width: 980 mm (38.6 inches)
- Overall Height: 950 mm (37.4 inches)
- Tires: 22 x 11-8 on 8-inch split-rim steel wheels (recommended tire pressure: 2.2 PSI / 0.15 kg/cm²)
