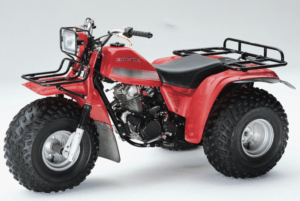

ATC200, ATC200E

The Honda ATC200 and ATC200E were produced from 1980 to 1983.

• Model Code for 80-83 models “958” .
• 5 speed auto clutch transmission, electric start on 200E models.
• 25x12x9 low pressure tyres. split rim.
• Tyre pressure 0.15 kg/cm2 (2.2 PSI ) 1920mm dia.
• Length 1810mm, Width 1100mm, Height 995mm.
• Engine bore 65mm, Stroke 57.8mm. CR 7.08:1 Displacement 192cc.
• Carb Keihin PD35C (ATC200),PD55A (ATC200E) main jet 105.
• Engine number below pull starter in front of gear shift shaft.
• Frame number located on steering head stock left side.
• Engine Oil capacity .95ltr (change) 1.35ltr (bone dry).
• Fuel tank capacity 8.7ltr.
• CDI Ignition.
• Plug gap 24-28 thou (0.6-0.7mm).
• Plug NGK DR8ESL.
• Valve clearance (cold) 0.05mm.
